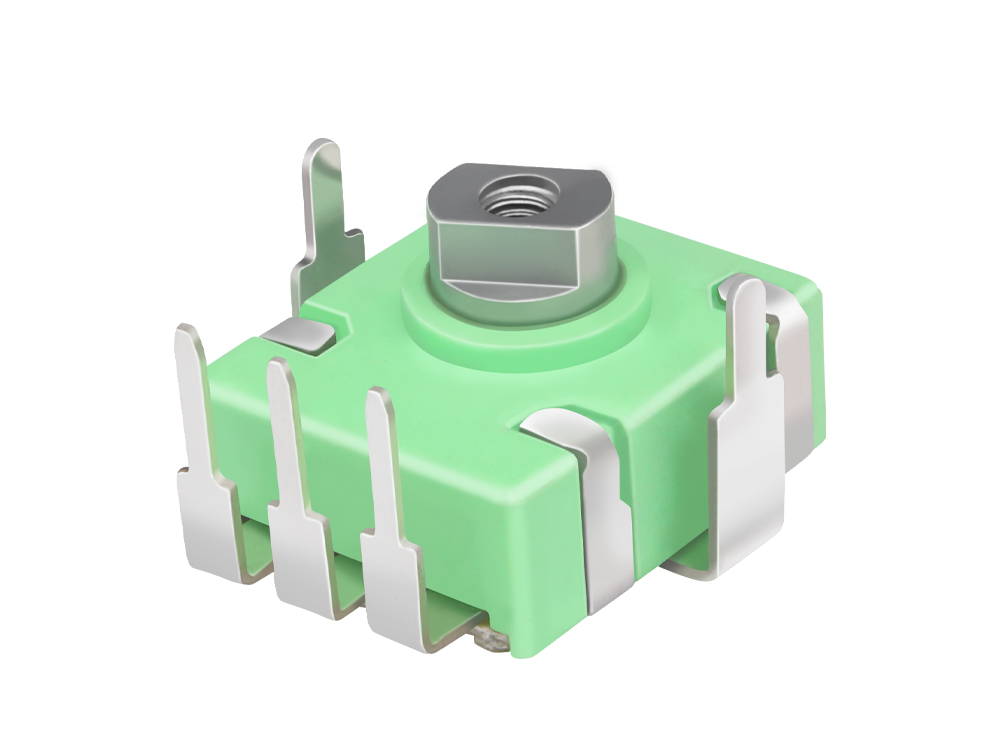

RA13 Metal Shaft Rotary Potentiometer
RA13 Metal Shaft Rotary Potentiometer

RA13 Metal Shaft Rotary Potentiometer

  • Series:RA13

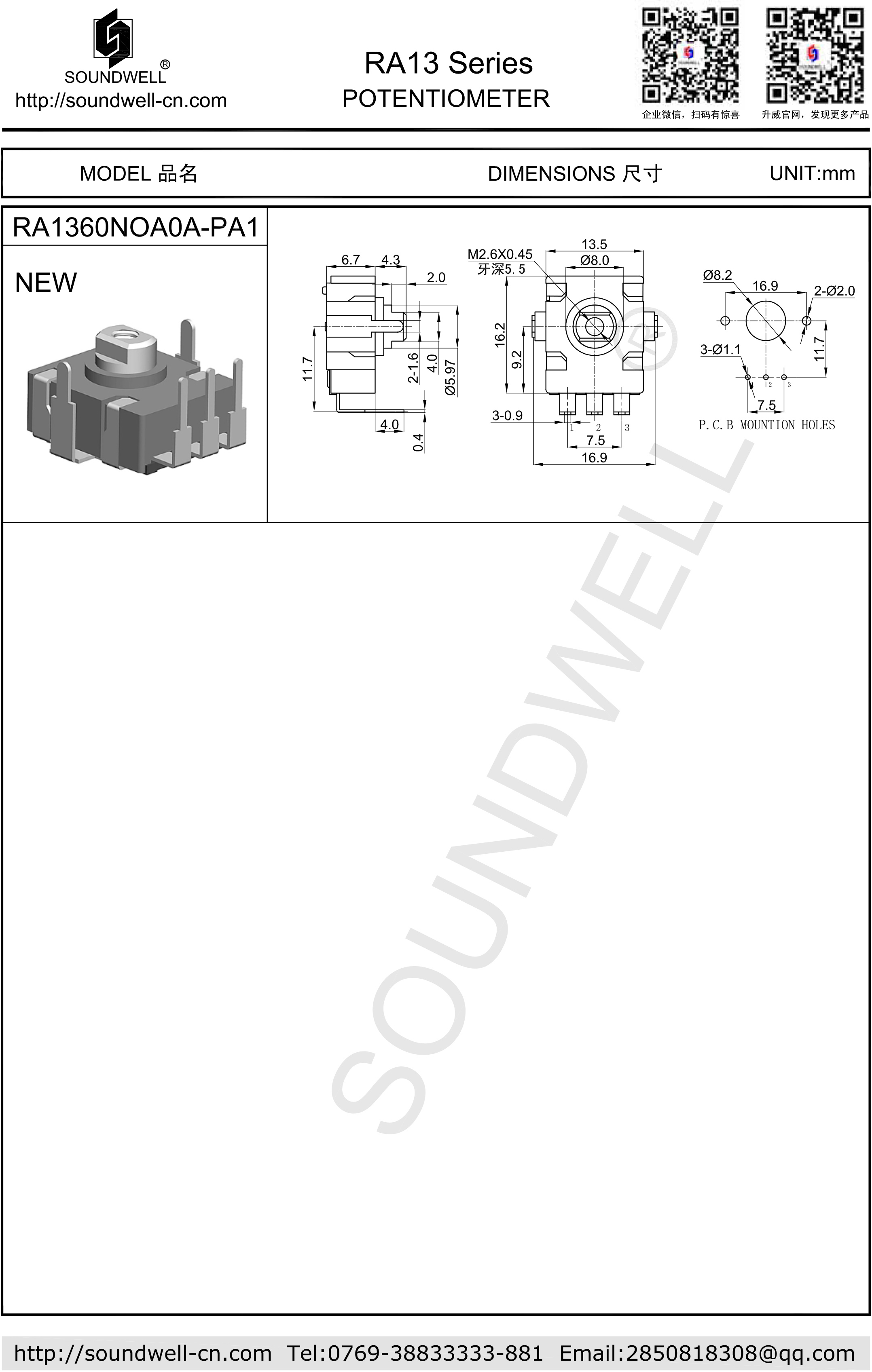

  • Format:See the following profile
  • Specifications

    Potentiometer model: RA13 series
    Name:

    RA13 Metal Shaft Rotary Potentiometer

    Main Specifications: Dimensions: 13.5mm;
    Rotation angle: 180°±10°;
    Rated power: 0.03W;
    Maximum operating voltage: AC 50V/DC 20V;
    Operating temperature: -10℃~70℃;
    Rotational life: 30,000 cycles Min;
    Product Features:

    Shaft lockable screw fixing knob saves space;

    Reliable performance with smooth feel;

    Applications:

    Professional audio and other related electronic devices.

    It is mainly used for adjusting the table, adjusting the volume and

    adjusting the temperature.

    RA13 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC
    1. Rotational Torque: 50~200gf.cm
    2. Total Rotational Angle: 180°±10°
    3. Shaft Stop Strength: ≥3Kgf.cm

    TWO、ELECTRICAL CHARACTERISTIC
    1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1M, ±30%
    2. Resistance Taper: B
    3. Rated Power: 0.03W
    4. Max. Operating Voltage: 50V AC/20V DC
    5. Insulation Resistance: 100M? 1 Minute at DC 250V
    6. Dielectric Voltage: 1 Minute at AC 250V

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational life: 30,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

    DownloadRA13-1.pdf
